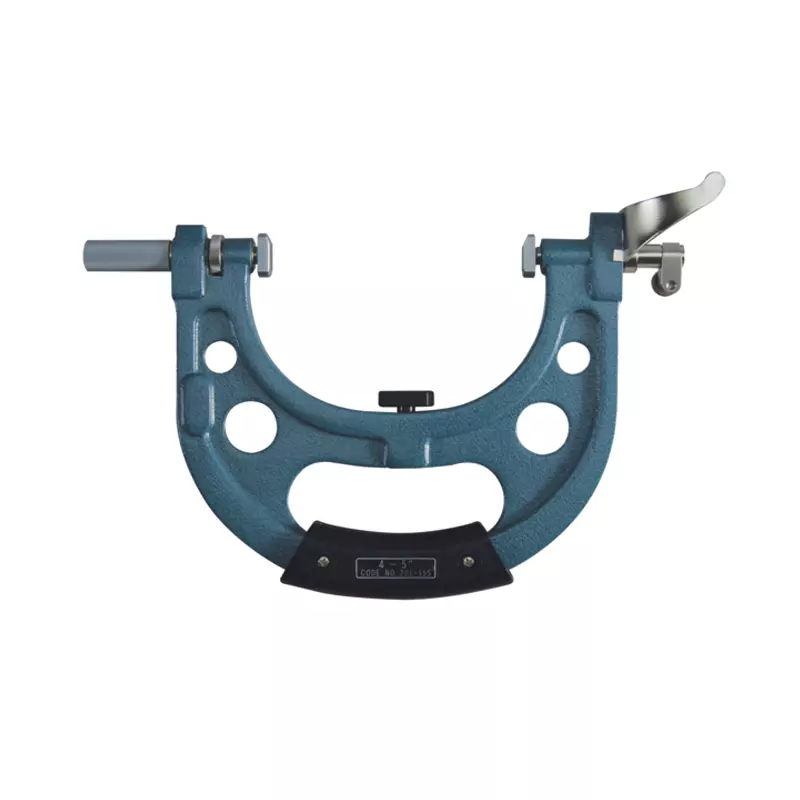

These Dial Snap Gauges are designed to let you quickly carry out GO/NG judgement of the
diameters of cylinders and shafts in machining processes.
They offer the following benefits:
diameters of cylinders and shafts in machining processes.
They offer the following benefits:
- Wide, flat carbide anvils.
- 2mm anvil retracting stroke.
- You can adjust the measuring range with an adjustment nut.
|
Range:
|
11 – 12 Inch
|
|
Anvil retracting stroke:
|
2 mm; 2 mm
|
|
Repeatability:
|
2 µm µm
|
|
Parallelism:
|
0,0002″; 0,0002″
|
|
Measuring force:
|
12 – 18 N
|
|
Remarks:
|
For indicator with 9.52 mm stem
|
|
Mass:
|
2050 g
|
|
Measuring face:
|
Carbide-tipped, micro-lap finish (13.5×12 mm); Carbide-tipped, micro-lap finish (13.5×12 mm)
|
|
Digital/Analog:
|
Analog
|
|
Inch-Metric:
|
Inch
|
|
Delivered:
|
Including hand guard
adjustable workpiece stop |
|
A:
|
556 mm
|
|
B:
|
321 mm
|
