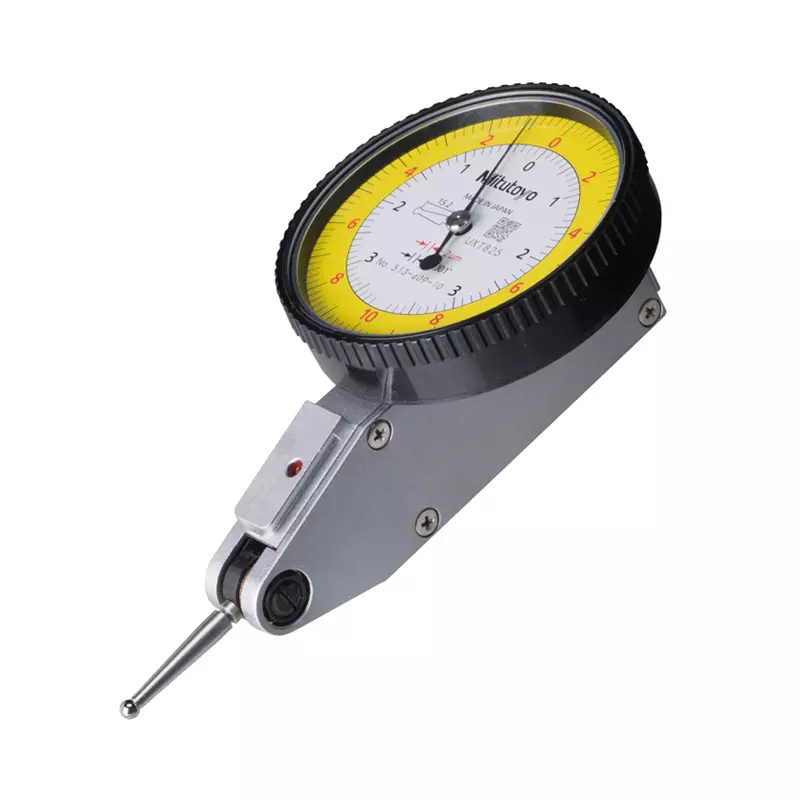

This is a Dial Test Indicator (Lever Type) which offers you the following benefits:
- Drastically enhanced durability, sensitivity and visibility.
- Glare-free flat crystal face allows easy reading of graduations.
- O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
- The stylus length is on the dial face to reorder a replacement
- Multi-layer coatings on the crystal.
|
Range:
|
0.7 mm
|
|
Accuracy:
|
±0.0005″
|
|
Graduation:
|
0.01 mm
|
|
Mass:
|
58 g
|
|
Scale:
|
0-35-0, 0-15-0
|
|
L1
[mm]: |
19.9
|
|
L2
[mm]: |
16.4
|
|
Error of indication one revolution:
|
±0.0005″
|
|
Contact point:
|
Thread M 1.7 x 0.35
|
|
Delivered:
|
In a box with stem ø3/8″ and 0,157″, stylus ø0,039″/0,079″/0,118″, swivel clamp and holding bar
|
|
Digital/Analog:
|
Analog
|
|
Inch-Metric:
|
Inch/Metric
|
